TAMIYA TRF421 Chassis Kit TAM42384

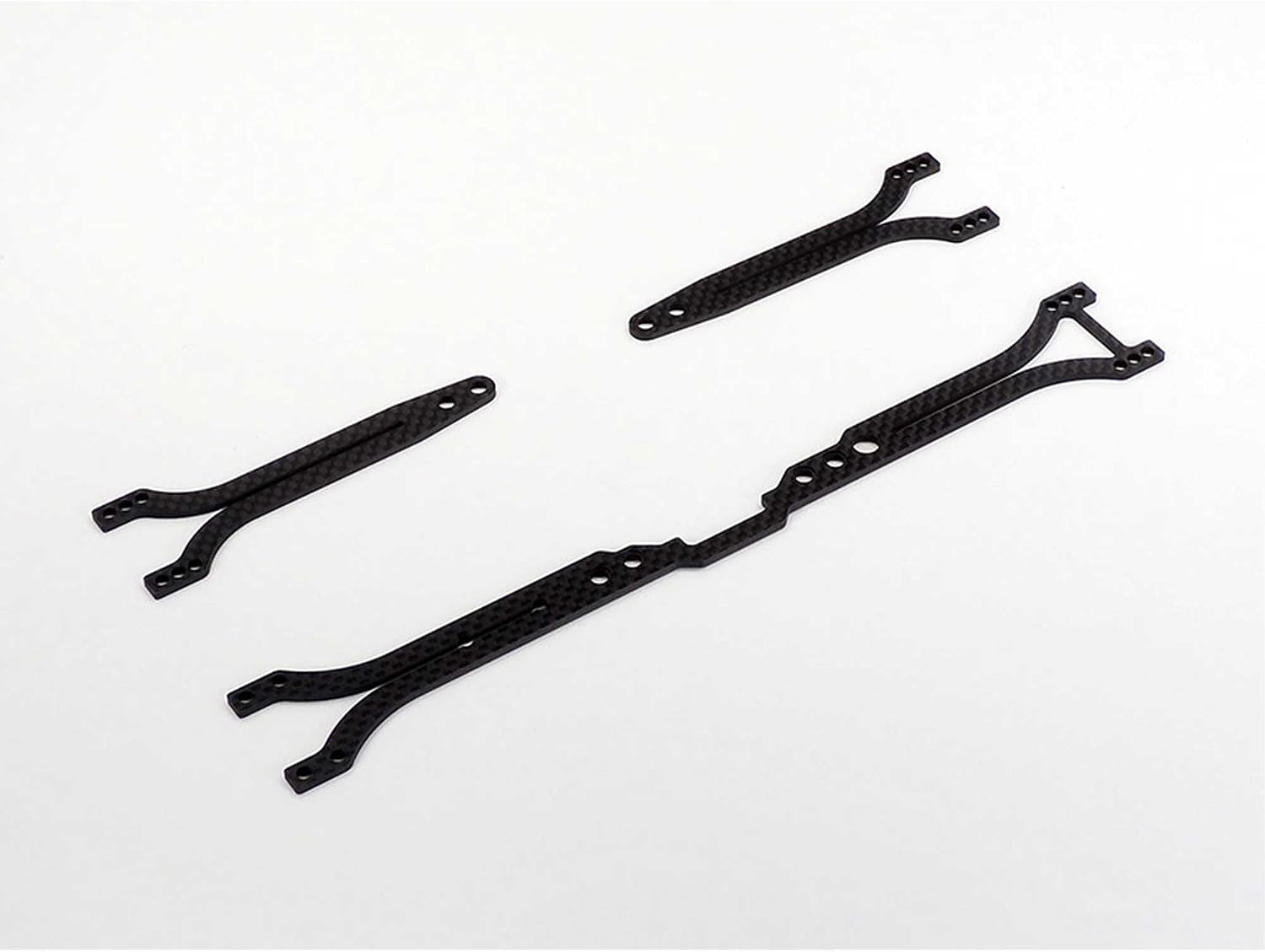

- 1/10 scale kit model - High-end competition touring car - Engine has been installed 22.7mm further to the chassis centre than in comparison to the previous model TRF420X (42382) - Timing belt forward and rear have the same length - Mounting for the main gear has been completely redesigned. The change/fixation takes place via just one screw. - Slim lower chassis compared to the 420X - Choice of 2 different top decks: one piece and two-piece upper deck. The upper deck can be built in 5 different setups via screws. - A-shaped suspension arms for high stability. - The longer lower suspension arms are mounted on the suspension blocks using ball heads. Approx. 7 mm longer wishbones ensure high stability and improved driving dynamics - Front track can be adjusted via the upwards - 3 selectable shock mounts (inside, middle, outside) on the front and rear lower wishbones. Change of the trailing via the upper wishbone possible (front 3.4.5 degrees; rear -0.5, -1.5 and -2. .5 degree) - Damper 5.5mm shorter than the TRF420X for a particularly low centre of gravity, less weight and more driving dynamics - New shock absorbers - New sealing rings (300051738) - Aluminium damper holder - Rigid axle front and oil-filled differential rear - Double cardan shafts at the front and universal gimbal rear. New bones (300042388) and 45 mm drive shafts (300042387) - newly designed rear wheel mounts - precise stabilisers that are attached particularly deep. Includes 1.0 mm, 1.1 mm and 1.2 mm versions - Steering designed with 2 steering arms and Ackermann with different adjustment options - includes sealed TRF ball bearings and 300022078 aluminium differential holder (0.8 mm offset, 2 pieces) - newly designed battery holder without adhesive tape - kit is delivered in a box which later also for transporting the model can be used can be used can Note: kit contains only the pure chassis. Required: body, battery pack, engine, wheels and RC components, etc.

• Drivetrain Features 22.4mm Toward Center Motor Position
• Updated Setup Of Spur Gear And Drive Belts

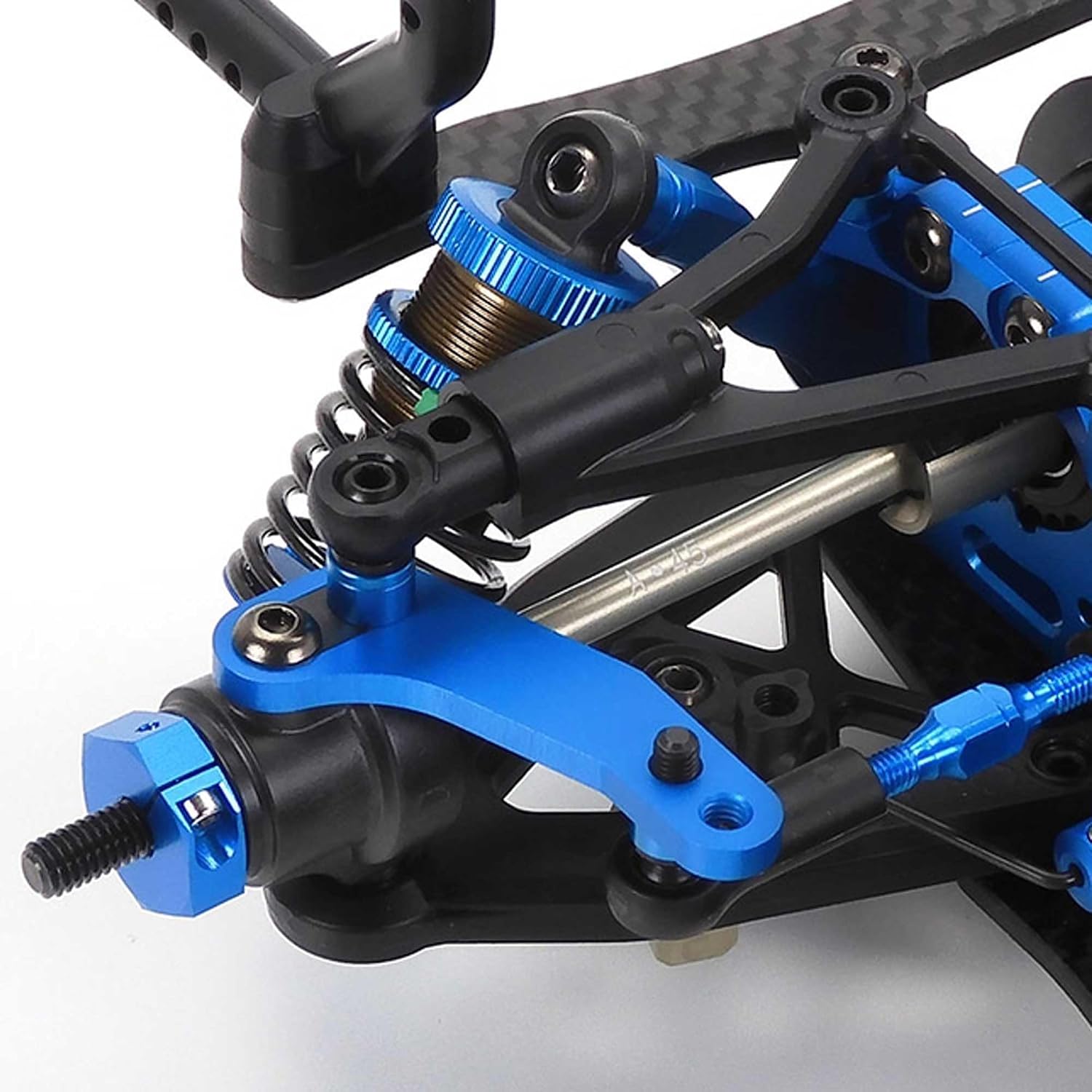

• A-Shaped Suspension Arms
• Front And Rear Differential Pullies
• Lightweight Rear Wheel Axles
